About the LR40

Like the bigger brother 44 and 58 models, new Longreach 40 combines the DNA of Longreach including the super efficient hull shape for long range, with a more compact package of interior options for cruising couples to explore the coast lines and inland harbours. BUT with options for either inboard motors OR outboard motors.

closed in flybridge optional
Lr40 Hardtop

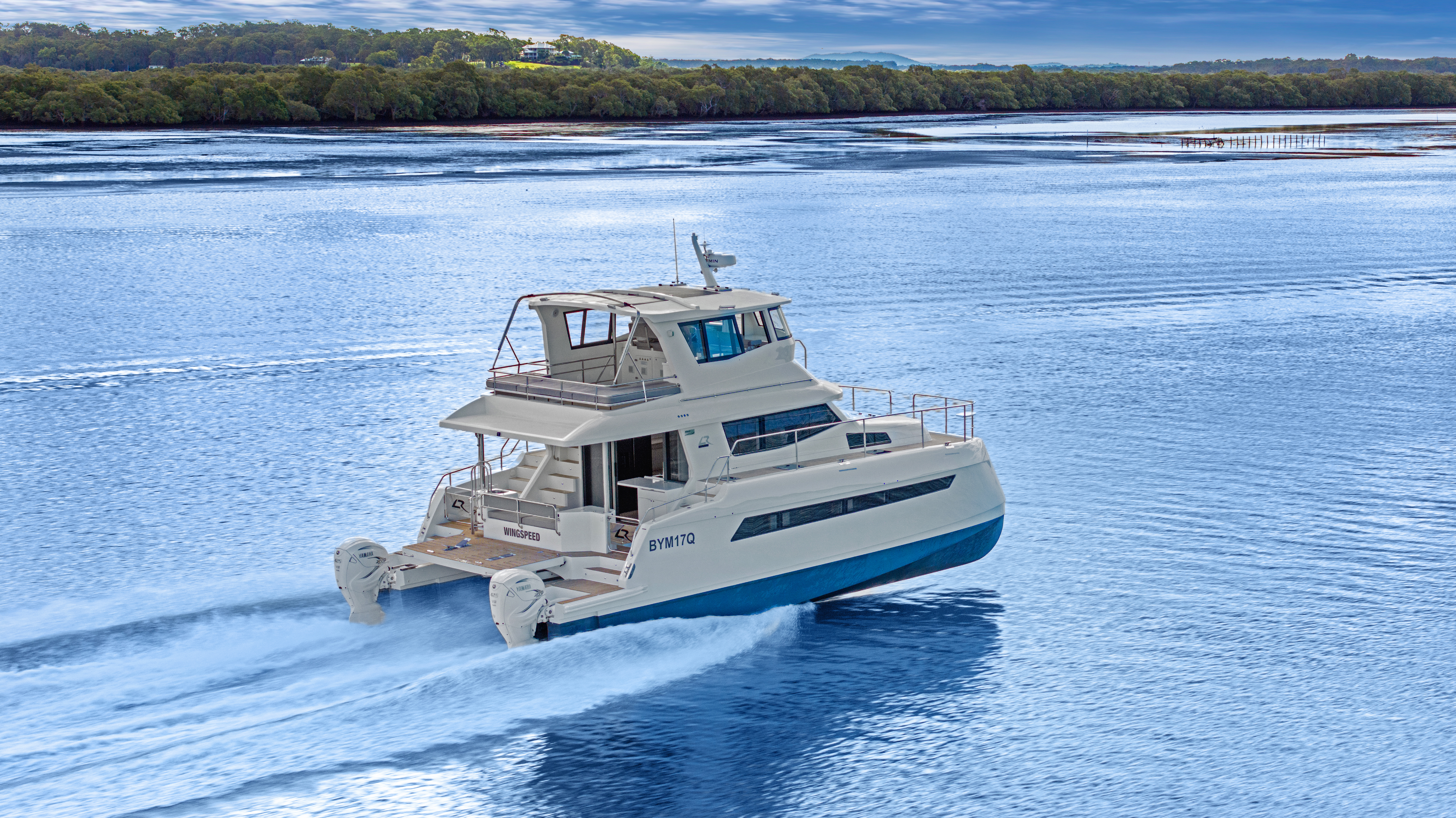

Inboards or Optional Outboards

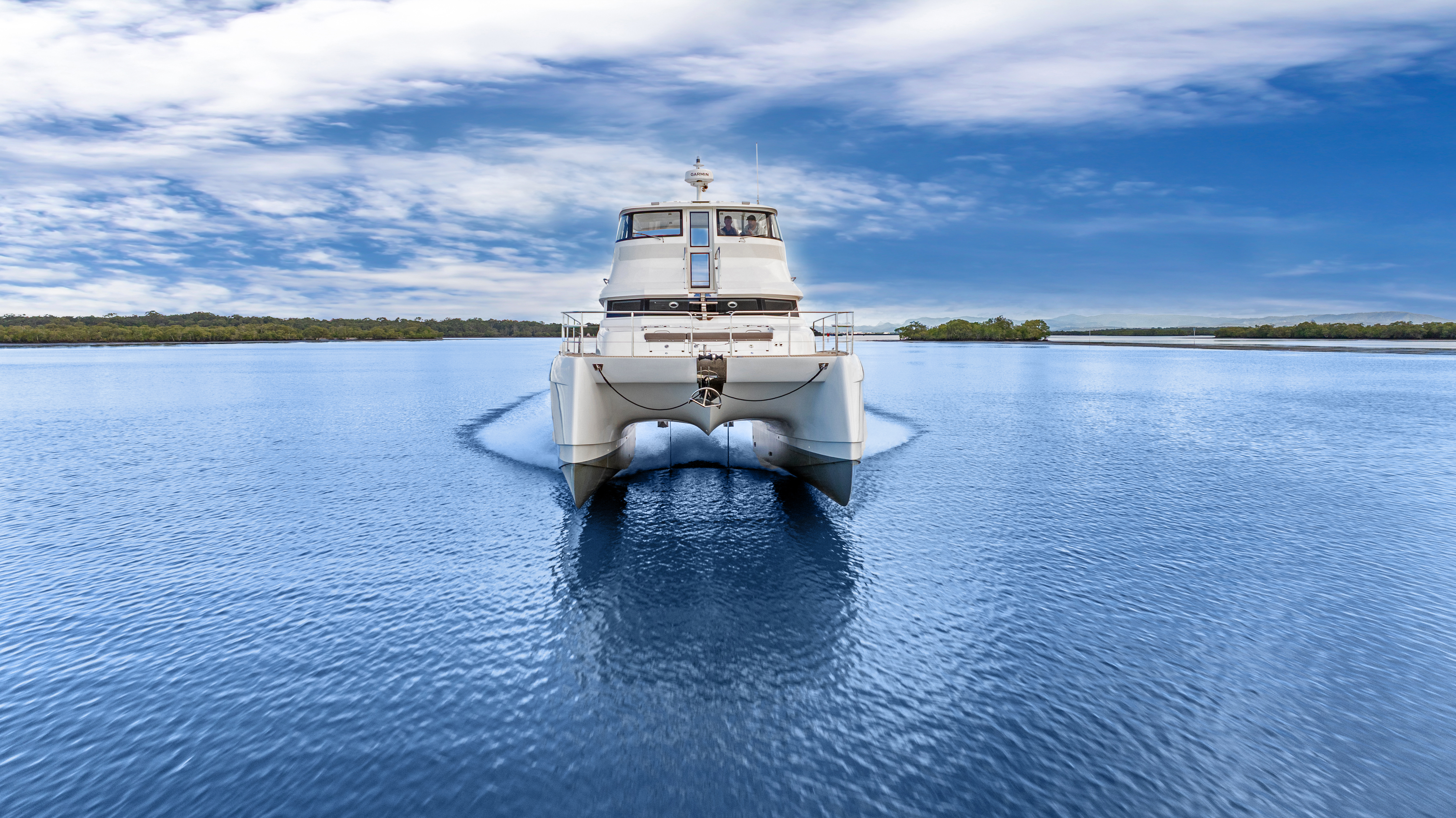

Reverse bows for waterline efficiency
Mri 44 Full

Statistics Can Go Here

Statistics Can Go Here

Statistics Can Go Here

Statistics Can Go Here

EXTERIOR

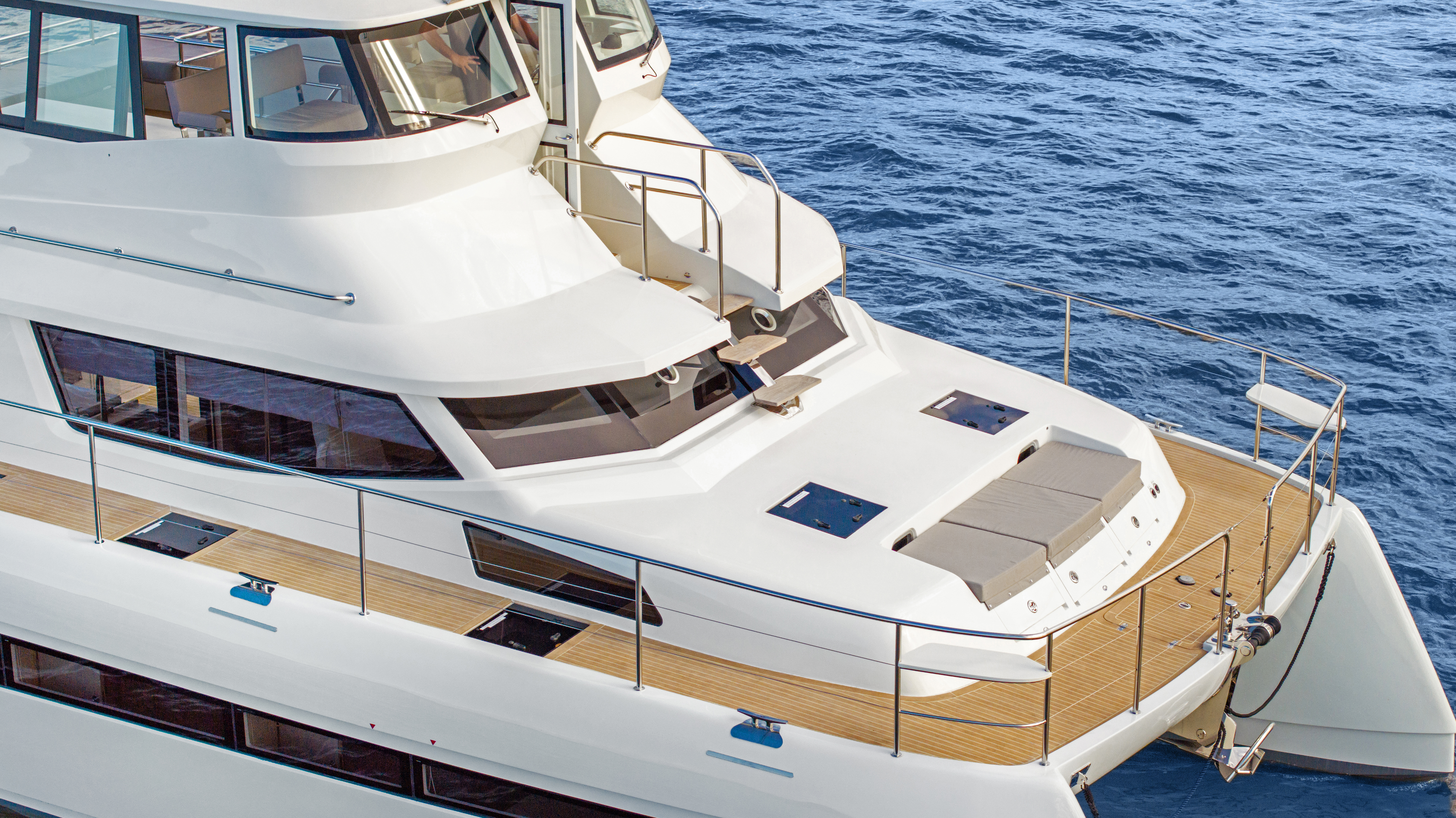

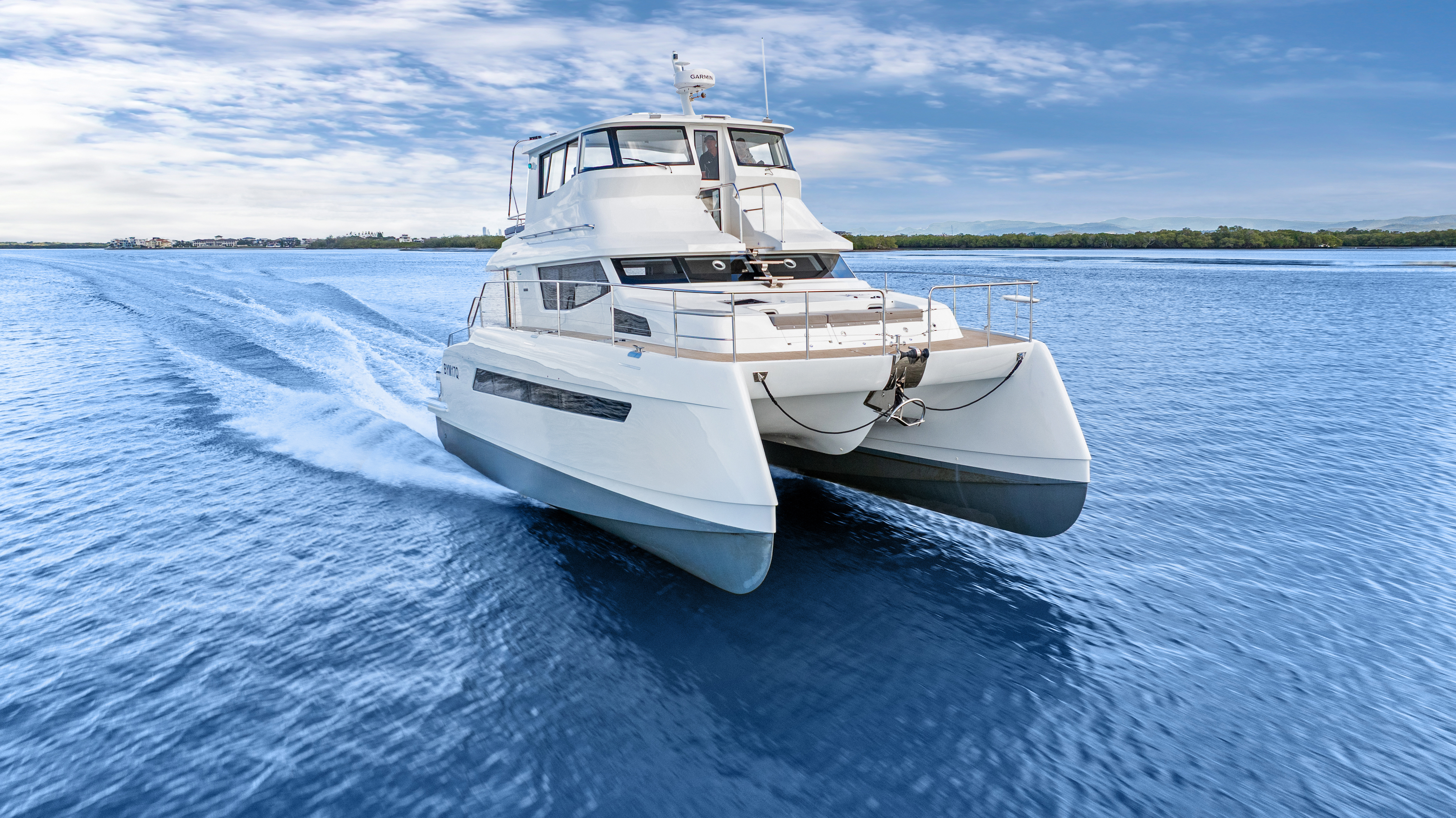

The slick lines of the Longreach 40 ensures a extended waterline length for efficiency due to the reverse bow shape, but importantly combined with wide deck walk ways, spacious cockpit living and the option to select from a range of hull colours.

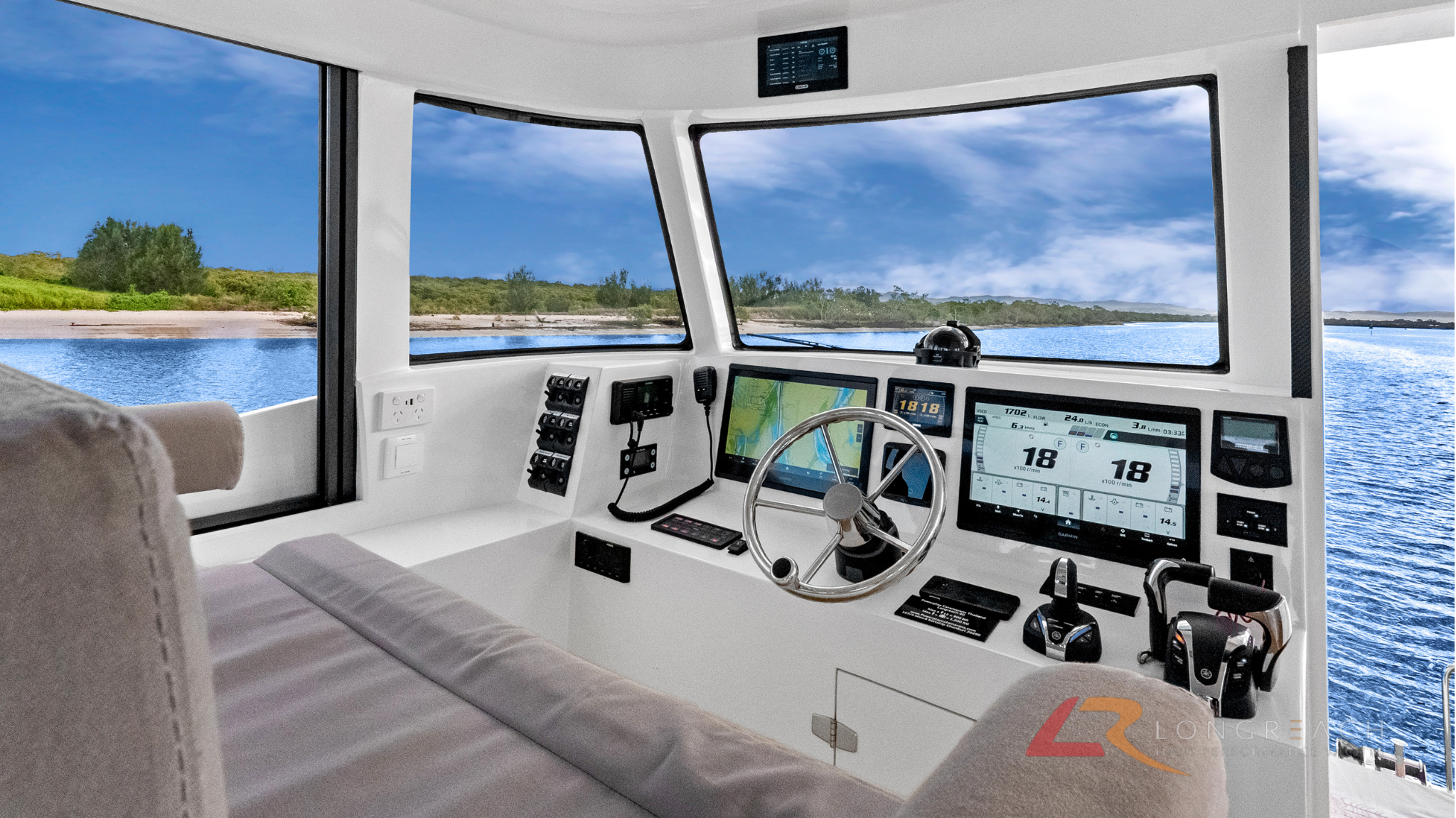

HELM & FLYBRIDGE

Up top the flybridge again has another spacious entertaining area, wet bar and centrally located helm with twin helm seats protected by high quality clears forward. There is access to the forward deck via forward steps down to the Muir anchor winch which can be controlled from an electric chain counter at the helm also. There is an option for an open flybridge or closed in flybridge.

Statistics Can Go Here

Statistics Can Go Here

Statistics Can Go Here

Statistics Can Go Here

Statistics Can Go Here

Statistics Can Go Here

Statistics Can Go Here

Statistics Can Go Here

SALOON & COCKPIT

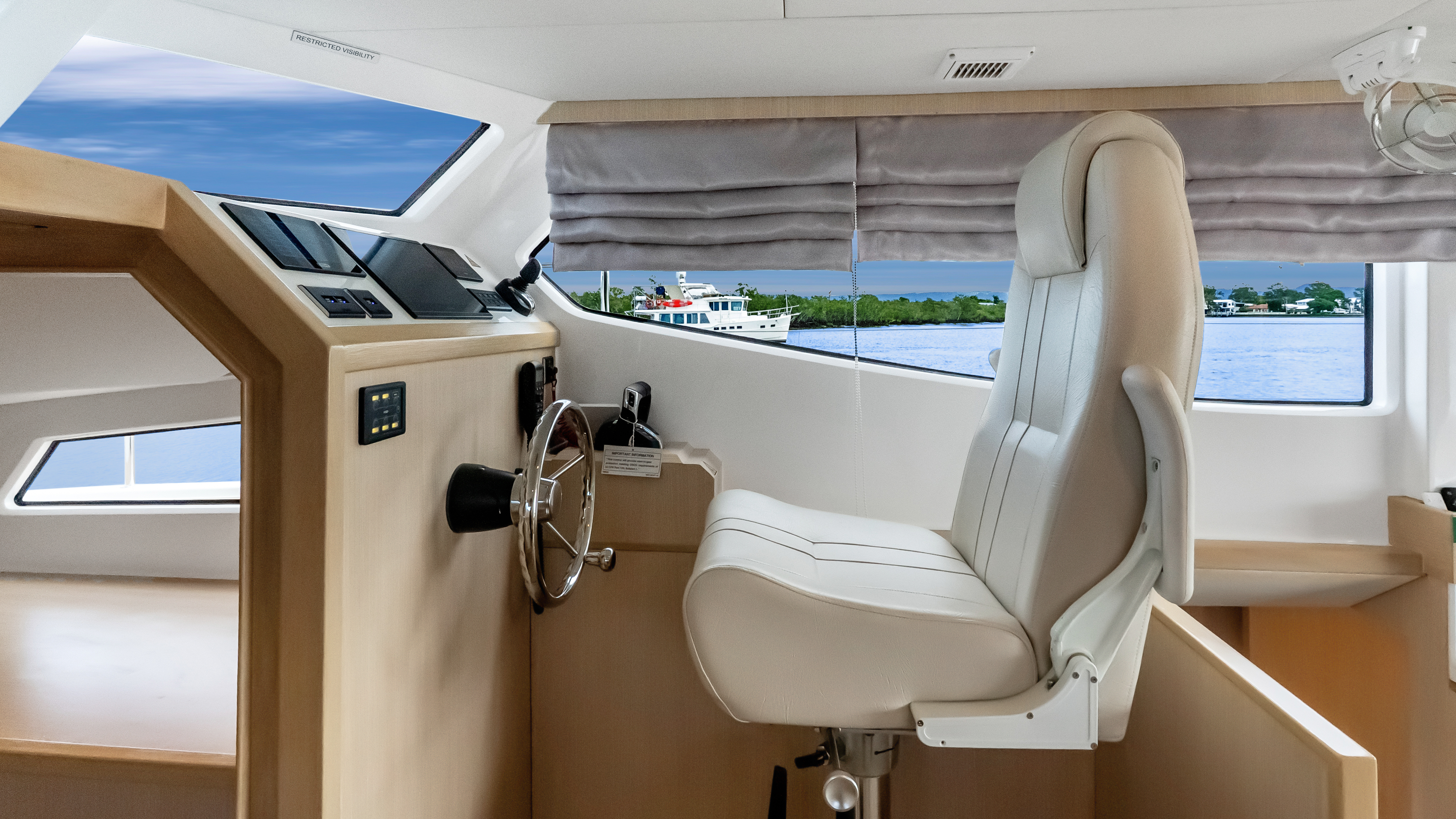

Entertain in the cockpit from the galley with a large opening sliding door and window without intrusive support posts. The interior has the option for an internal helm, but standard with lounge and full panoramic windows.

The cockpit offers full shade protection, spacious seating and walk through transoms to provide easy access to the tender and boarding.

INTERIOR CABINS

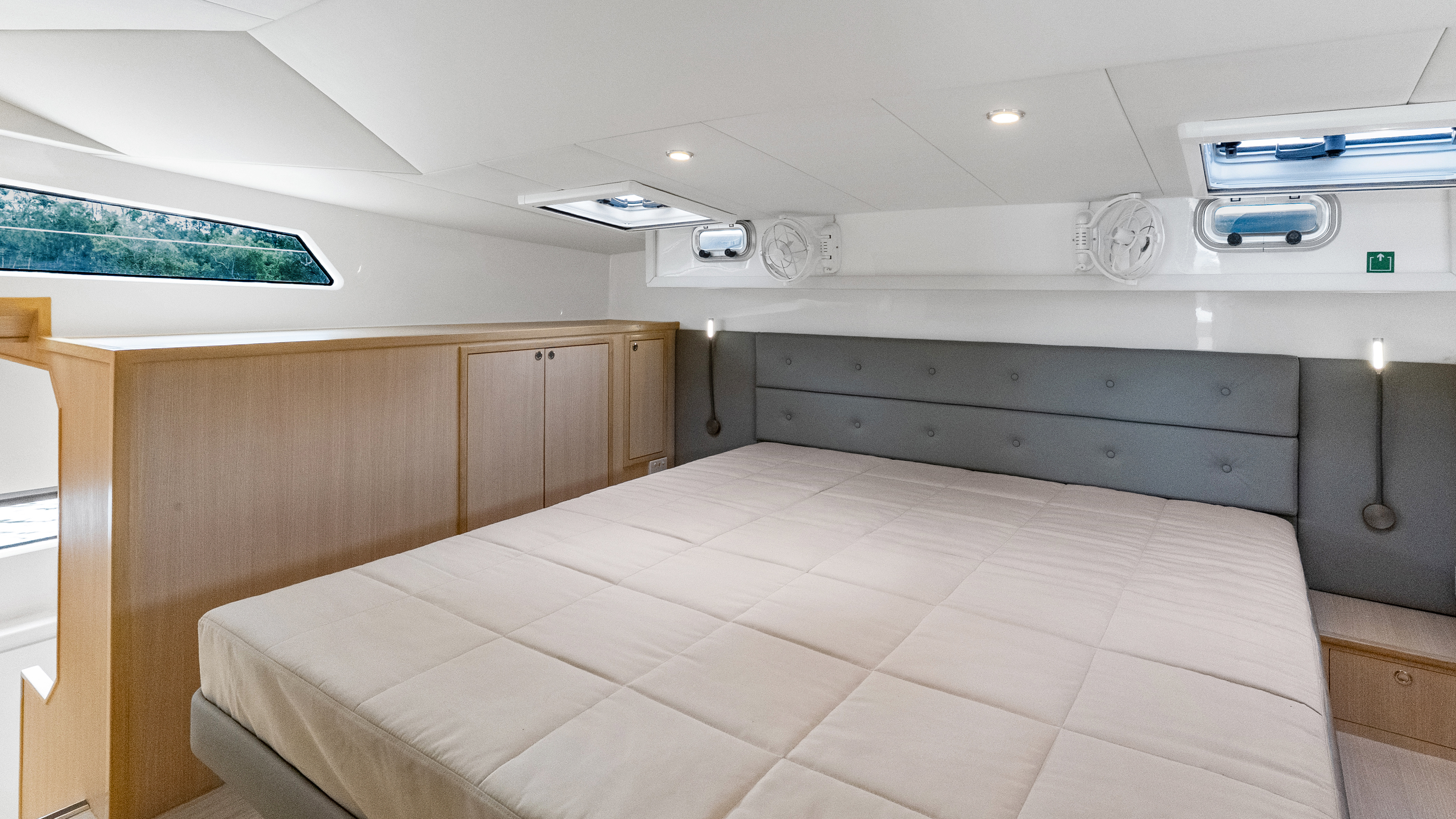

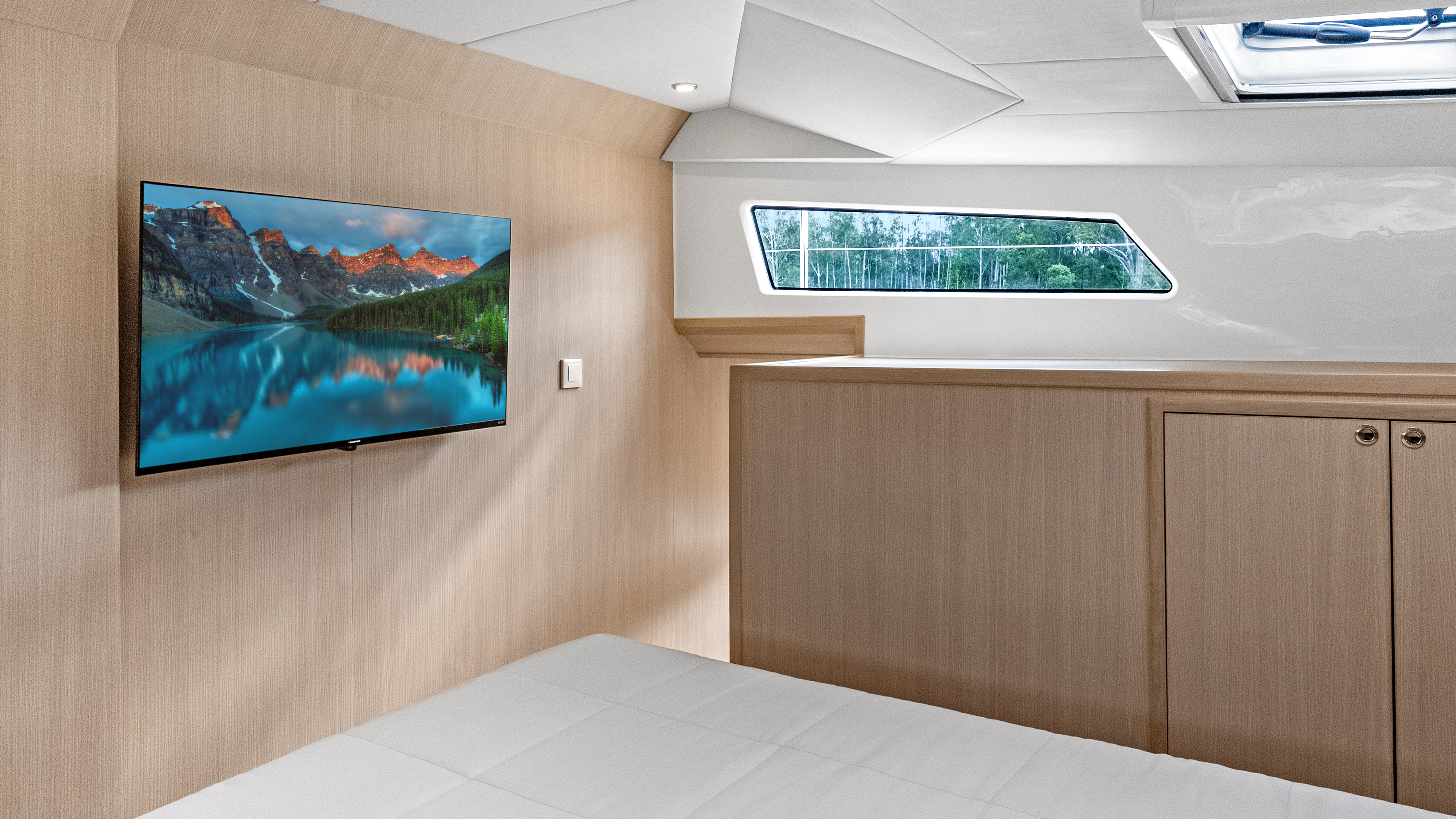

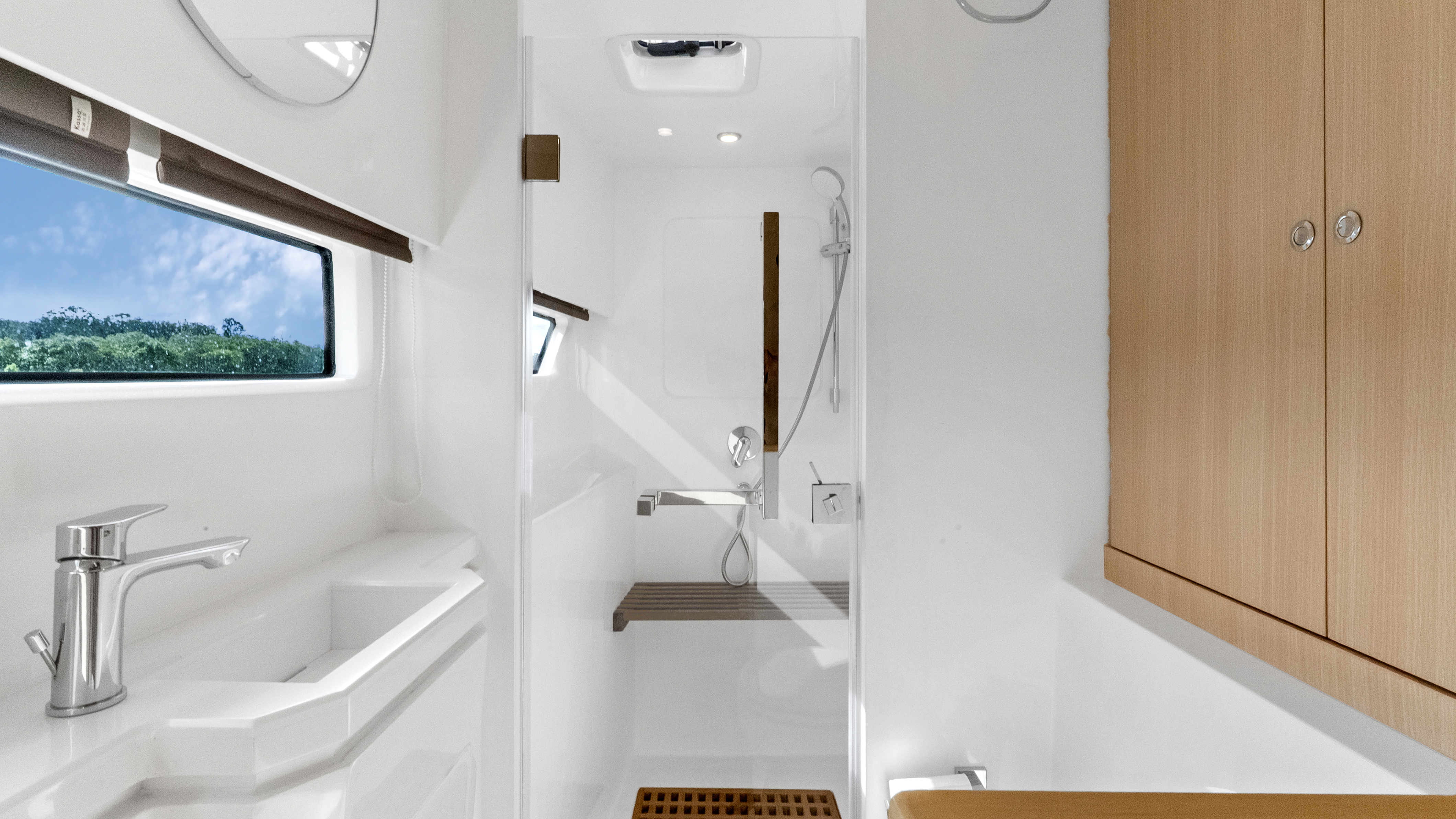

The owners master cabin features the generous queen-sized bed, hatches for natural ventilation plus air-conditioning, TV  and an ensuite including a fresh water electric toilet.

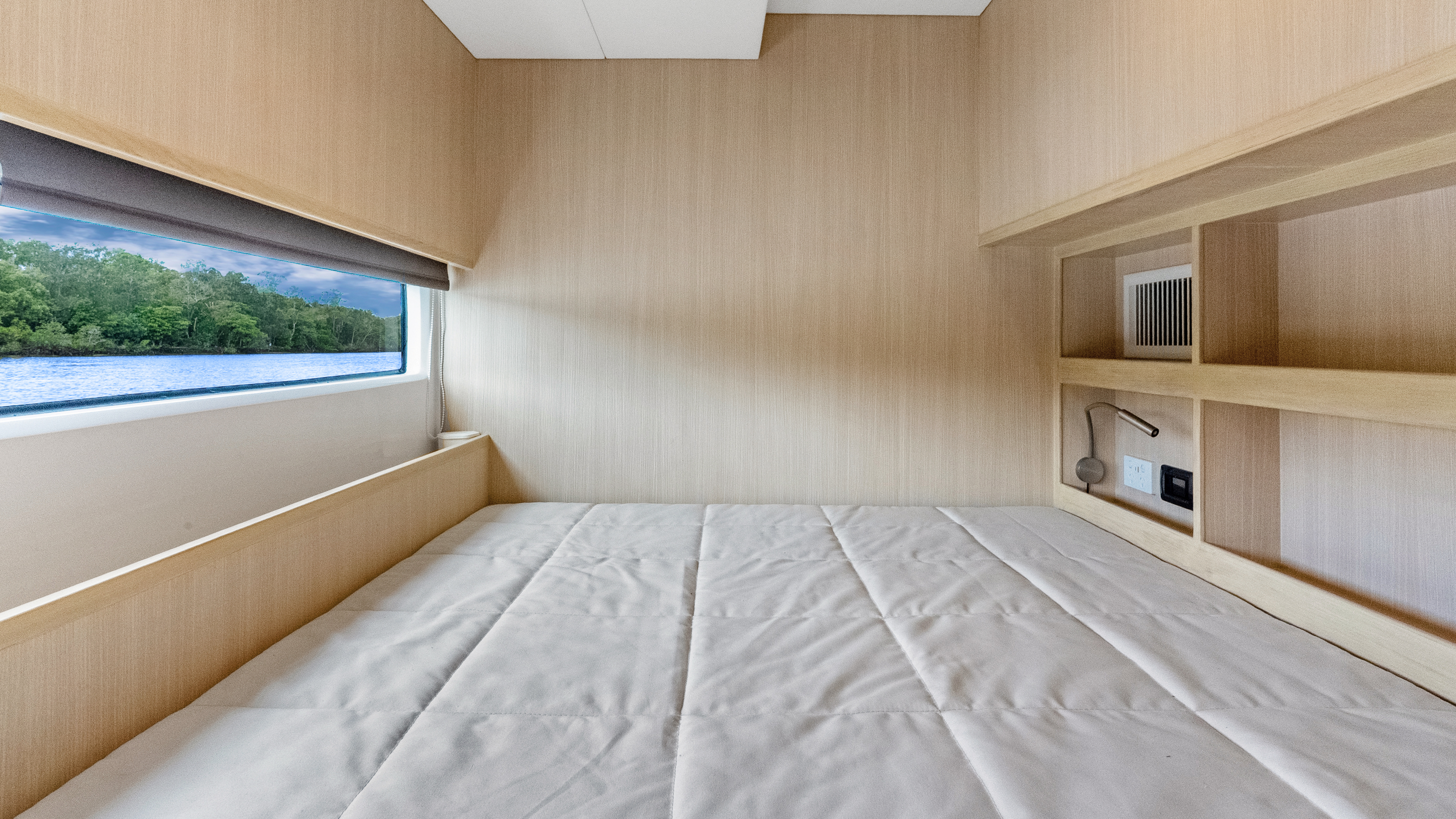

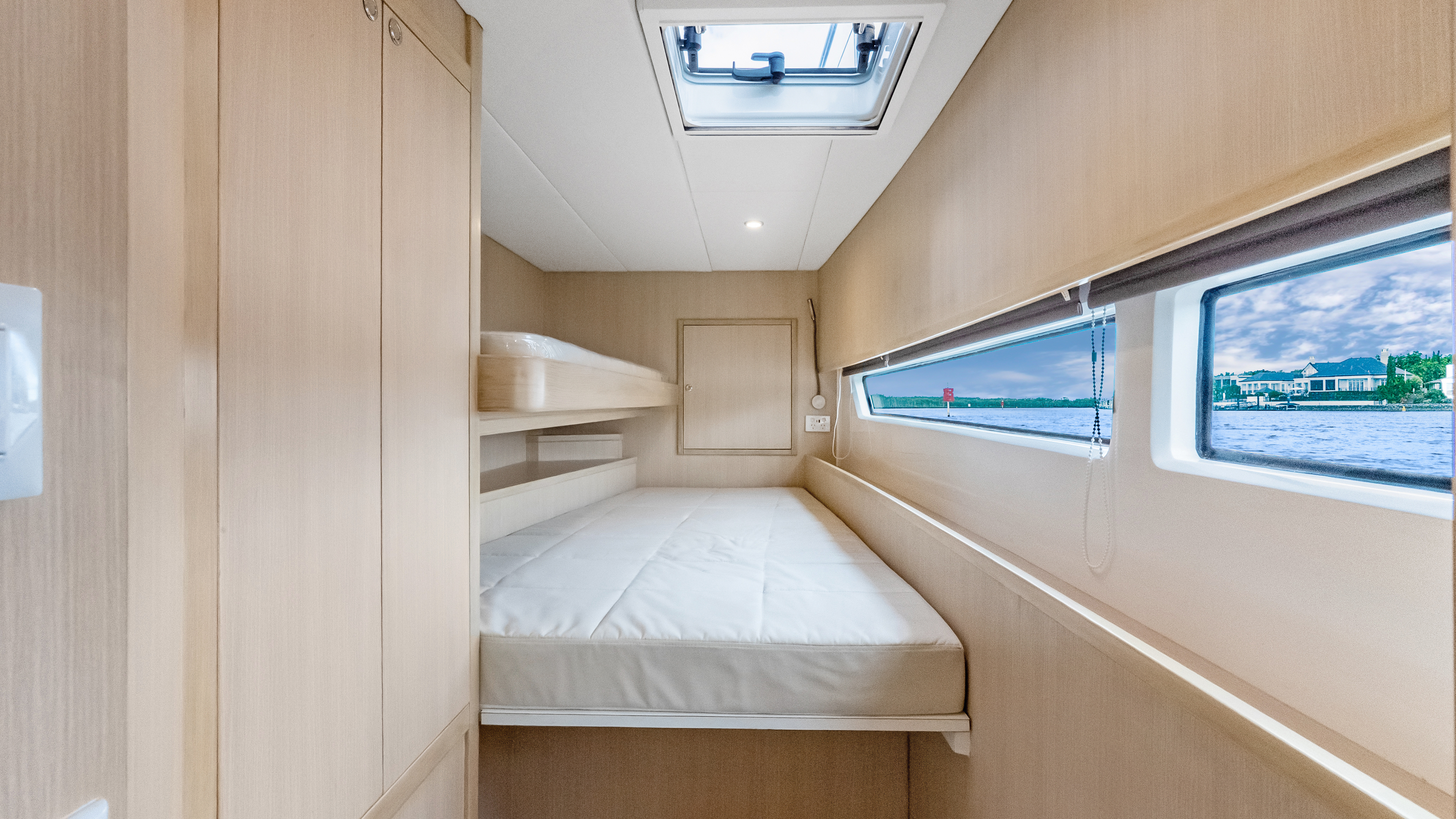

While the guest cabins enjoy comfortable beds with large windows alongside. A selection of beautiful timber interior options are available.

Statistics Can Go Here

Statistics Can Go Here

Statistics Can Go Here

Statistics Can Go Here

PERFORMANCE

The Longreach 40 is available with diesel inboard twin 250 Yanmars providing a range of 1,200 Nautical Miles at 12 knots and a top speed of approx. 25 knots, or for higher speeds  hydrofoils and twin 425 Yamaha Outboards at top speed of approx 30 knots.

LR40 Specifications

Certificate CE Class A with Lloyds Scantlings

Length overall
12.00m (39.37ft)
Beam overall
5.85m (19.19ft)
Draft (Light ship)
1.2m (3.94ft)
Bridge deck clearance (Light ship)
0.8m (2.63ft)
Air draft - height from dwl Light ship
6.6m (21.65ft)
Headroom – Main areas, cabins
1.95m/2.0m (6.39ft)
Displacement Light ship
13,000 Kg (14.33 UST)
Full load displacement
17,000 kg (18.75 UST)
Fuel tank capacity
2X1500L=3000L(792.5 USG)
Fuel, long range reserve tanks
N/A
Water Capacity
2x600L=1200L(317 USG)
Holding tanks Capacity
2x180L=360L(95 USG)
Engines x 2
Yanmar 4LV 250Hp
Top speed
25 Knots
General cruise speed half load
6-18 Knots
Range at cruise speed Half Load 12 knots
1200NM(10% reserve both)

Vessel Layout

Range Map

1100 nm
Average Range
2200 nm
Max Range
